RCD Performance

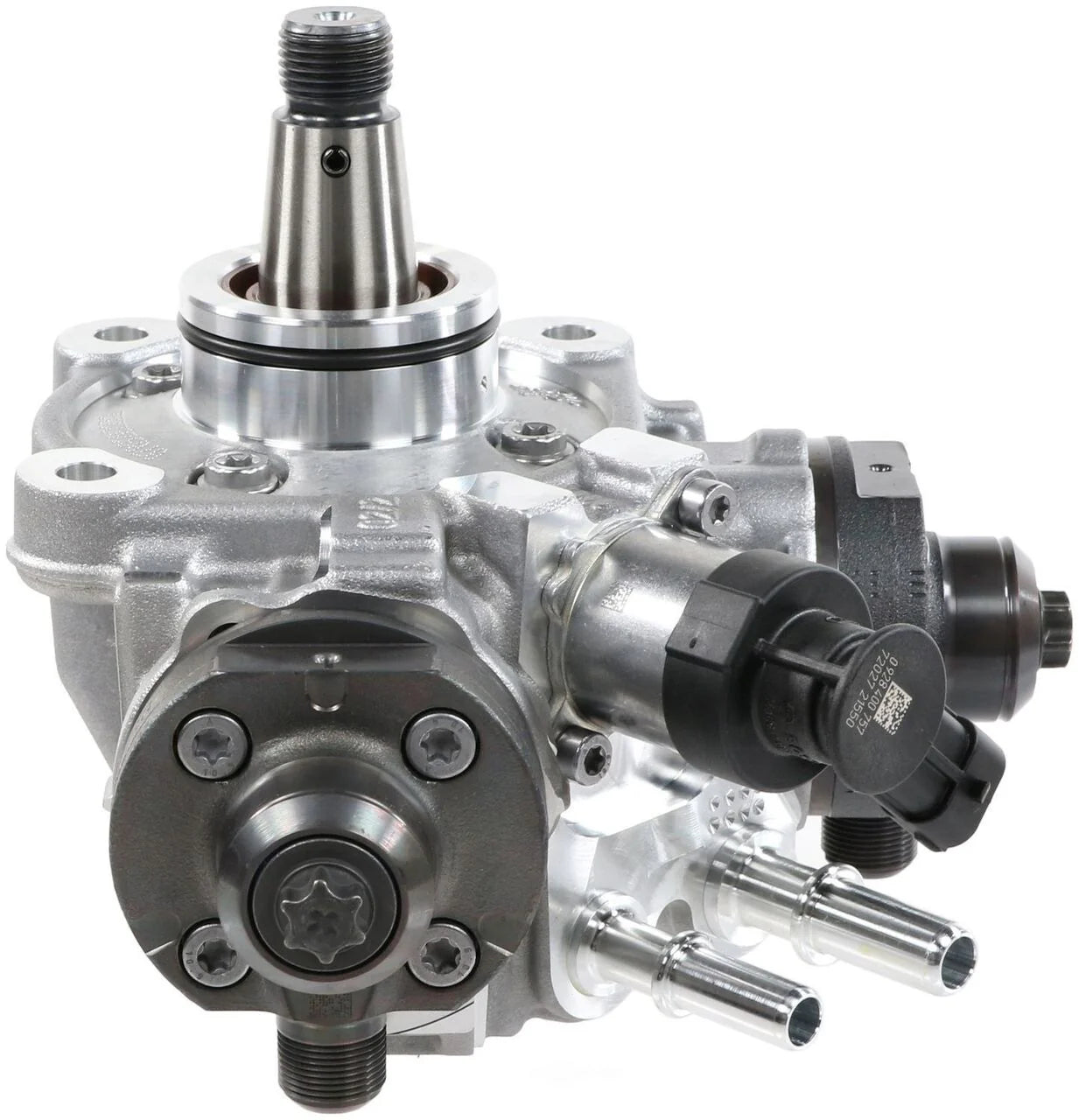

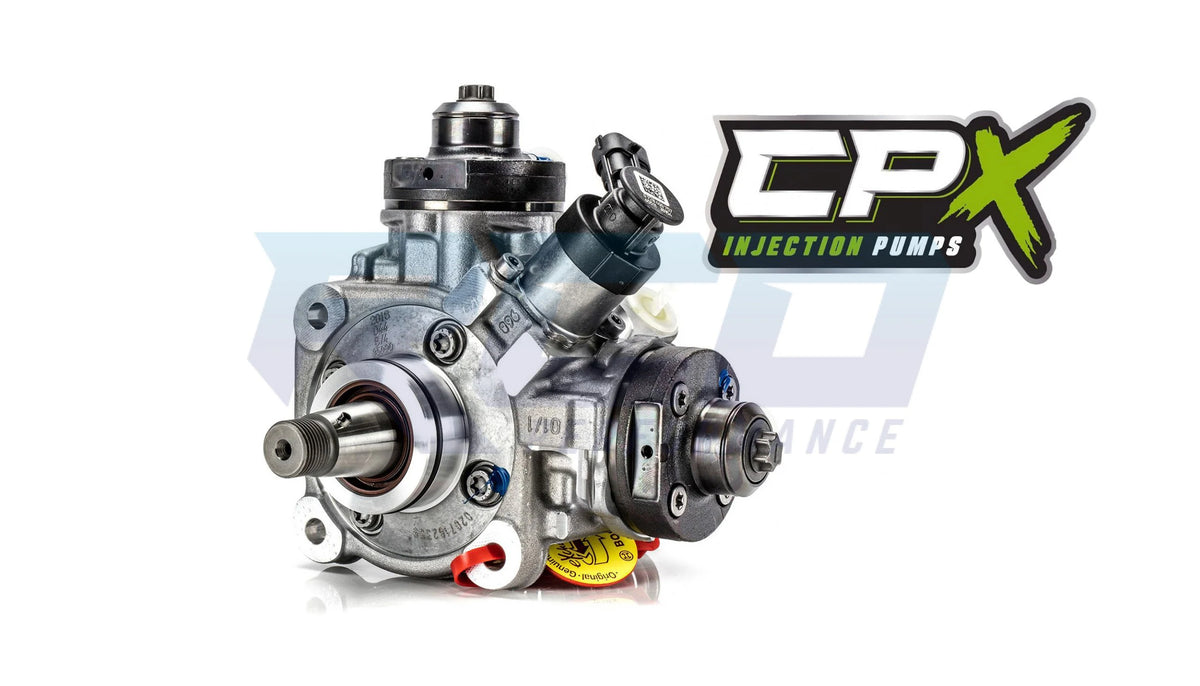

RCD 2016-2019 NISSAN TITAN XD CUMMINS 5.0L CPX INJECTION PUMP
RCD 2016-2019 NISSAN TITAN XD CUMMINS 5.0L CPX INJECTION PUMP
SKU: RCD-5350400001
Regular price
$1,649.00
Regular price
Sale price
$1,649.00
Unit price
per
Shipping calculated at checkout.
1 LEFT IN STOCK
In Stock ships same or next business day
Couldn't load pickup availability
CORE CHARGE - $300 FEE WILL BE APPLIED AT CHECKOUT
2016-2019 NISSAN TITAN XD CUMMINS 5.0L INJECTION PUMP
PATENT PENDING
The CP4 pump Bosch should have built, the CPX.
• Pinned lifter buckets to prevent rotation and stop failures. Even during a gel.
• New feed port, preventing any contaminated crankcase debris from entering the plungers and barrels. (Built in disaster prevention kit)
• New feed port, preventing any contaminated crankcase debris from entering the plungers and barrels. (Built in disaster prevention kit)
• Direct drop-in replacement, no aftermarket fuel lines or components needed.
• No additional labor or modifications to install.
• 24 Month no questions asked replacement warranty.
And just to point out, the whole “US diesel fuel doesn’t have enough lubricity for the CP4.” That’s a lie. I have disassembled, measured and under microscope, inspected pumps with over 500k miles with essentially zero wear.
The flaw was nothing to stop the roller lifter from rotating in a vacuum event. (Gel, filter change, low pressure feed issue.) This is why the LML Duramax pumps drop like flies. There is no lift pump to keep positive pressure on the plungers and barrels.
This allows a slop, or gap between the cam and the lifter roller. Which allows it to turn. Similar to a roller cam in a engine. When there is no lifter guide or link bar. The lifter rotates, destroying the cam and lifters and filling the engine with hardened metal filings. These filings, are what fills your fuel rails and injectors with debris, ruining them.
The flaw was nothing to stop the roller lifter from rotating in a vacuum event. (Gel, filter change, low pressure feed issue.) This is why the LML Duramax pumps drop like flies. There is no lift pump to keep positive pressure on the plungers and barrels.
This allows a slop, or gap between the cam and the lifter roller. Which allows it to turn. Similar to a roller cam in a engine. When there is no lifter guide or link bar. The lifter rotates, destroying the cam and lifters and filling the engine with hardened metal filings. These filings, are what fills your fuel rails and injectors with debris, ruining them.
All 2011 - 2024 RCD CPX CP4 pumps are modified internally in a 5 AXIS CNC to return fuel to the tank. This prevents debris from entering the injector in the instance of a failure. "DISASTER KITS" ARE NOT NEEDED!
Cross Reference:
• 0445010834
• 0445010648
• CR/CP4S2/R93/40-S
• 16700EZ49ARE
• 0 445 010 834
• 0 445 010 648
