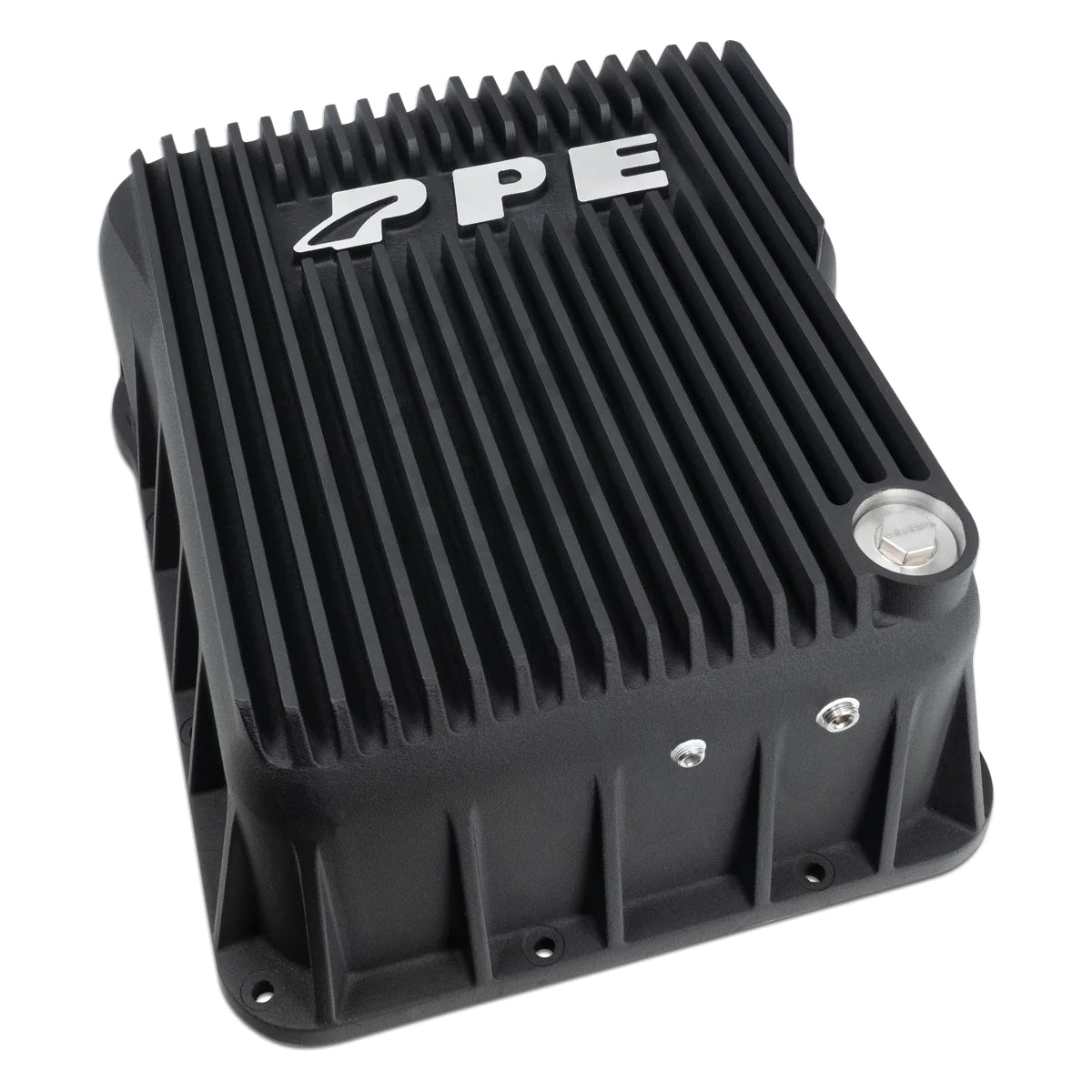

PPE 2001-2019 GM 6.6L Duramax w/ Allison 1000-2000-2400 Series Transmission Heavy-Duty DEEP Aluminum Transmission Pan

Simply stated, more is always better when it comes to transmission fluid. A higher volume of fluid takes longer to heat up, allowing for lower, more stable transmission temperatures and extending your transmission life.

Cast from high-quality A356-T6 heat-treated aluminum for strength, PPE’s Heavy-Duty Deep Allison Transmission Pan holds 4 quarts of extra transmission fluid. Tall 1-inch internal and 3/4-inch external cooling fins further help with heat dissipation, allowing for up to 40 degrees F reduction in operating temperatures.

The PPE Heavy-Duty DEEP Aluminum Transmission Pan also features a high-powered Neodymium- magnet-equipped drain plug to keep harmful ferrous metal contaminants out of the transmission internals.

This deep transmission pan comes standard with the Deep Pan Transmission Filter (128058700). PPE’s exclusive built-in filter lock keeps the deep filter securely in place. Plated Allen bolts are also included.

Features:

• High-grade A356.0-T6 heat-treated cast aluminum alloy
• Increases fluid capacity by 4 quarts
• External cooling fins measure 6.25 inches from the gasket face
• Internal heat sinks reduce transmission fluid temp, reduce fluid sloshing
• Gussets and thick flange provide extra strength and robustness
• High-power neodymium magnet equipped billet stainless steel plug with Viton O-ring
• Drilled and threaded 1/8-inch and 1/4-inch NPT ports for optional temperature probes
• Compatible with OEM gasket
• Built-in Filter Lock keeps filter securely in place
• Limited lifetime warranty

Notice of Change: Heavy-Duty DEEP Aluminum Transmission Pan - GM Allison 1000-2000-2400 series

 GTIN 840171217001
