| PART # |

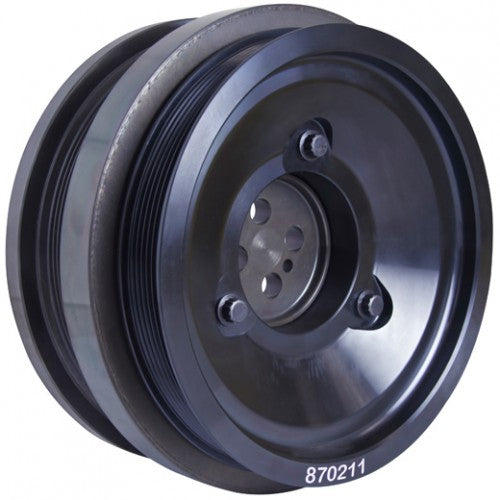

870211 |
| Fitment |
2003-2007 Ford. 6.0L Power Stroke w/ dual alternators. |
| Bore Diameter |
NA |
| Degree Marking Range |
None |
| Degree Markings |
No |
| Engine Balance |
External |
| Finish |
Black Zinc |
| Keyway |
Not Applicable |
| Length |
4.199" |
| Material |
Steel |
| Mounting Hardware Included |
No |
| Outside Diameter |
8-7/8" |
| Pulley Finish |
Black Zinc |
| Pulley Size |
For use with dual alternators |
| Safety Rating |
SFI 18.1 |
| Weight / Rotating Weight |
29.1 lbs / 19.4 lbs |
