HOW 4th Gen Cummins Coolant Riser Kit (2010-2012)

Eliminate the turbo coolant supply with the Coolant Riser Kit. The riser kit allows you to eliminate the coolant feed that is required for factory style turbochargers when using an aftermarket turbo that does not require a coolant supply.

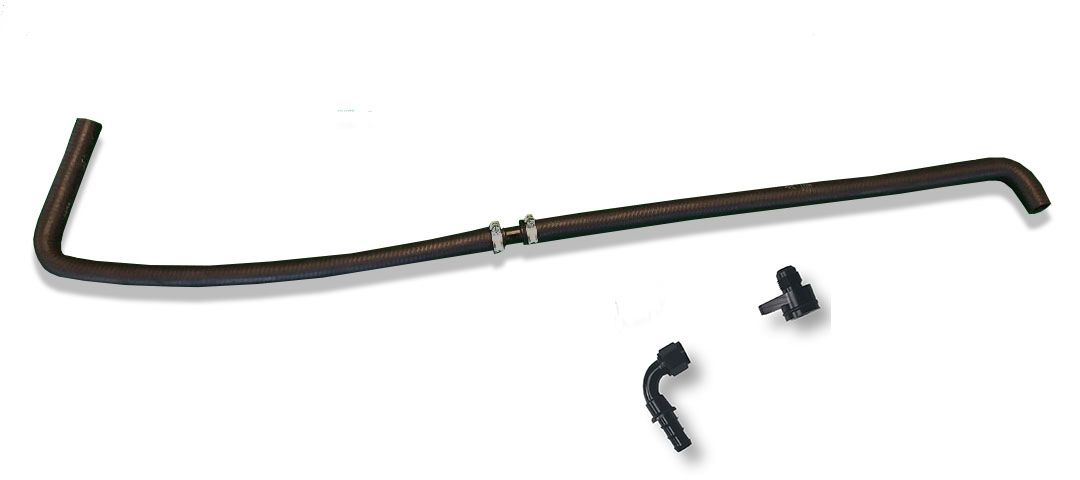

 Kit Contents:

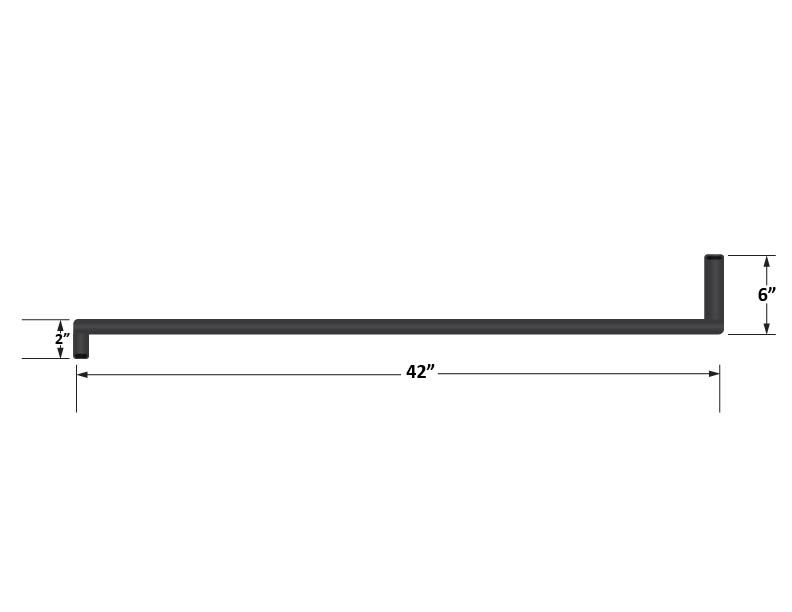

• Coolant hose
• -10AN 90deg hose barb fitting
• Coolant riser delete plug adapter with O-ring
• 1/2" NPT plug
• 1/4" NPT plug
• #10 hose clamp
• Zip-ties

FPE-34574-A

FPE-34224-B

809010

93204

93208

For model years 2007 - 2018 6.7L trucks, including both automatic and manual equipped transmissions, factory installed transmission fluid heat exchangers are uncommon. For customers with a 6.7L that has a heat exchanger, a heater tube can be purchased at your local Chrysler Dealership [PN: 68048997AA ] to complete the installation. You will also require a 16mm or 18mm plug that can be found in the plug kit FPE-6.7CR-COOL-PLUG
