**SET OF 4** EMF Dodge Ram 10-13 Upper and Lower Ball Joint Kit

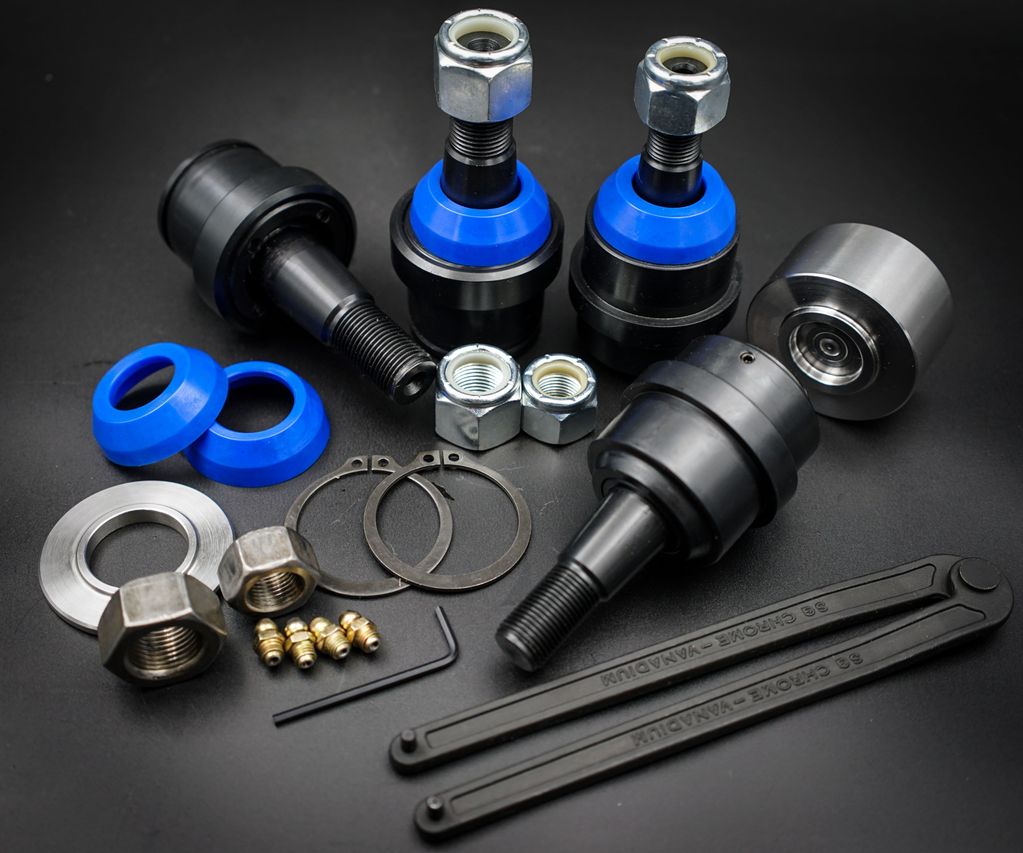

Includes all 4 ball joints, Spanner Wrench and Allen Key and Upper and Lower Install Tools.
Upper Ball Joints Fit:
2006-2008 Dodge Ram 1500 4WD MEGA CAB ONLY
2003-2018 Dodge Ram 2500/3500 4WD
2011-2018 Dodge Ram 2500HD / 3500HD
Lower Ball Joints Fit:
2010-2013 Dodge Ram 3500HD 4WD
2010-2013 Dodge Ram 2500HD 4WD
The Install Tools for the Upper and Lower Ball Joint are to avoid damaging the Ring and Cap when pressing the ball joints into the knuckle using a suitable Ball Joint Press. They are included with each set of 4 purchased. Pics below show how the Installation Washer is used on Lower Ball Joint and Installation Cup is used on the Upper Ball Joint:
ALSO NOW INCLUDED: 1 pair of Intermediate Steering Shaft Bushings! These are MANDATORY with every set of EMF Ball Joints installed. It takes 5 minutes to put them in, instructions are included - but if you want to see any more details, go to our youtube channel to watch some videos http://youtube.com/user/emfevo
If you are unsure which Ball Joints your vehicle may need (Standard or Oversized), measure the ID of the hole in the knuckle or axle. The OD of the joint should be 0.002 or greater than the hole. See below for OD measurements of our products.
Facts about the EMF Ball Joint:
- 2 Canadian and US Patents covering the design
- Rebuildable so you will never have to purchase an entire unit again, you simply replace the inner race and pin and off you go. You can do this right on the truck without removing the housing from the knuckle
- Serviceable so if you ever start to feel movement in the joint, you simply back out the set screw on the side of the cap and tighten the cap then replace the set screw. This can be done right on the truck without having to remove anything from the knuckle.
- Greaseable so you can just pump a couple squirts of grease into it around every oil change and go
- The entire unit is 100% Canadian Made by an Alberta Small Business. We have a strict Quality Assurance policy and each piece we make is numbered and logged with tolerances and measurements documented so if there is ever a problem we can look back on when it was manufactured and what the material specs were.
- EMF is the only Ball Joint with the removable race and pin (part of our patents). Competitor products have a removable pin that can be rebuilt, however the inside of the housing will wear as the pin wears resulting in the inevitable replacement of the entire unit in the future, as the pin will no longer possess a tight fit. By having the internal race and pin set on the EMF ball joint, the race will act as the wear point instead of the housing body creating a long lasting unit.
- EMF’s price point is set below the competitor pricing which is very enticing to the customer. We are not only a manufacturer and business, we are also the consumer so we wanted to have something affordable and high quality available.
- Each EMF Ball Joint unit is made from 4140 HTSR material and then sent to a metal treating facility to be Nitride Coated. Liquid Salt Bath Nitriding is a second heat treating process on the material resulting in up to a 30% strength increase as well as a beautiful black oxide corrosion resistant coating that also resists galling and does not reduce the tolerances of the pieces.
EMF Ball Joint Warranty
- Life-Time Warranty against Material and Manufacturers Defects. EMF will replace part of or the entire unit if it is determined to be an issue that falls under this category. The customer is encouraged to contact EMF directly to determine cause of fault and to receive warrantied products.
- Warranty does not cover breakage due to misuse of the product, improper installation or as a result of another component failure on the vehicle.
- EMF Ball Joints are meant to be rebuilt, which means the internal races and pin will wear over time under normal circumstances. The internal race and pin components are not covered by replacement Warranty, unless it is determined there is a manufacturer defect that caused premature wear. In order to maximize your product life, regular maintenance which includes tightening of the cap and greasing are required.
