BSI

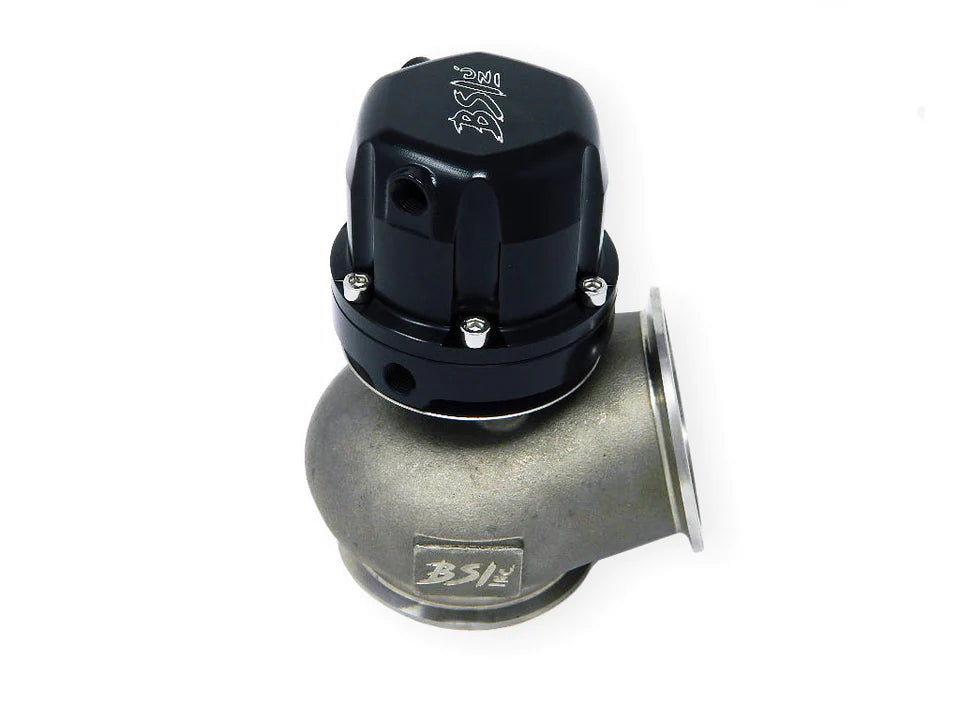

BSI 60mm Wastegate

BSI 60mm Wastegate

SKU: BSI-60WG

Regular price $425.00
Regular price Sale price $425.00
Sale Sold out
Shipping calculated at checkout.

60mm Wastegate

  • Designed with a two-piece Billet dome made from 6061 aluminum, and a black anodized finish.
  • The piston inside replaces the conventional diaphragm, which is a two-piece serviceable part.  We pressure-tested and rated it for 150 psi working pressure.
  • On our piston we use a viton O-ring, and we include spares. We use a nominal O-ring size, so if you have any mishaps replacements are easy.
  • The wastegate valve is constructed from a super alloy mix to handle the hottest and harshest conditions your engine can throw at it. We also use this alloy mix to ensure fuels don't corrode the valve.
  • All reference ports are 1/8 inch npt.
  • Body is casted from stainless steel.

What's Included!

  • Stainless inlet and outlet flanges
  • Stainless clamps with hardware
  • (3pcs) spring kit (approximate ratings for 5psi , 7psi and 14psi with a combined capability approximating 26psi depending on application)
  • Spare O-Rings
  • (2pcs) 1/8npt Stainless Barbs
  • (2pcs) 1/8npt Stainless Plugs
