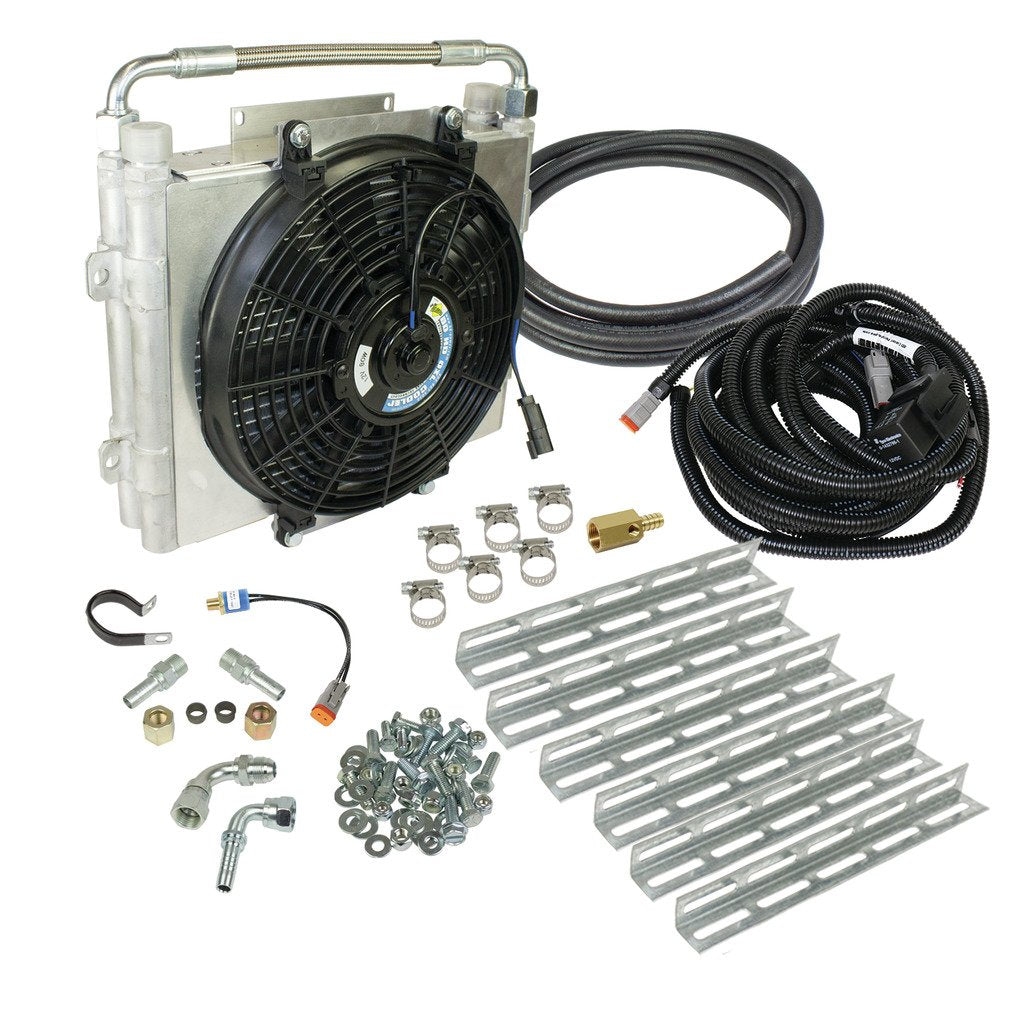

BD XTRUDE DOUBLE STACKED TRANSMISSION COOLER WITH FAN - COMPLETE KIT 1/2IN LINES

BD XTRUDE DOUBLE STACKED TRANSMISSION COOLER WITH FAN - COMPLETE KIT 1/2IN LINES

1030606-DS-12

No Stock / AVAILABLE TO ORDER

Vendor
BD DIESEL
Regular price
$1,343.95
Sale price
$1,343.95
Shipping calculated at checkout.
Quantity must be 1 or more

HOT transmission oil has to be COOLED to keep you on the track. Double stacked cores deliver over 40,000 BTU/HR of cooling and over 350% temperature drop versus the factory system - 36% better temperature drop than BD's standard single core kit. The 200 Micro Extruded passages provide a large surface area to transfer heat for external air flow cooling while turbulent oil flow design promotes a more complete cooling. Large 5/8-inch ports prevents inlet/outlet restriction and furnace brazed rails have been tested to 300psi of pressure. The thermostatically controlled 80-watt, 10-inch, 800 CFM electric fan offers ultimate automatic oil temperature control. Xtruded Transmission Oil Cooler packages come complete with all fittings, clamps, hoses, hardware and a Build-It-Yourself galvanized bracket kit for quicker and cleaner installation - no wasting time fabricating brackets out of scrap metal. The pre-wired loomed harness with fuse and relay comes with OEM style sealed connectors to resist elements and give factory-like install look.

FEATURES

  • Large surface area to transfer heat for external air flow cooling
  • Turbulent oil flow design promotes a more complete cooling
  • Large 5/8-inch ports prevents inlet/outlet restriction
  • Furnace brazed rails have been tested to 300psi of pressure
  • Thermostatically controlled 80-watt, 10-inch, 800 CFM electric fan
  • Kits complete with all fittings, clamps, hoses and hardware
  • Build-It-Yourself galvanized bracket kit for quick and easy installation - no wasting time fabricating brackets out of scrap metal
  • The pre-wired loomed harness with fuse and relay comes with plug-in connectors
  • Dodge 47RH / 47RE / 48RE / 68RFE - 1/2-inch Cooler Lines
  • Ford 5R110/6R140 - 1/2-inch Cooler Lines)
  • Double stacked cores deliver over 40,000 BTU/HR of cooling
  • Over 350% temperature drop versus the factory system
  • 136% better temperature drop than XTRUDED single core kit
INSTALL TIME

  • 3 Hours 30 Minutes
WARRANTY

Parts
  • 12-Months
  • 24,000 Miles
NOTE

  • Intended to be used in conjunction with factory transmission coolers and not as stand-alone units
VIDEOS
