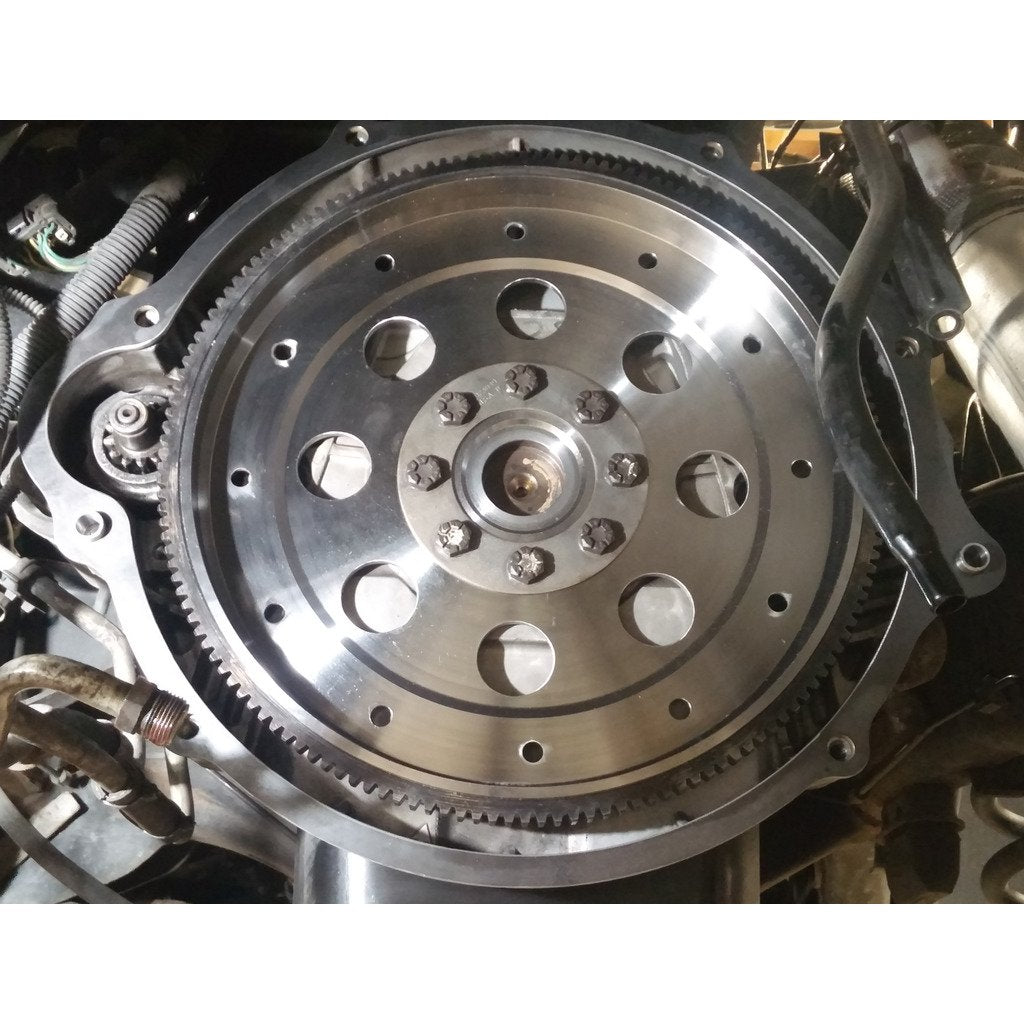

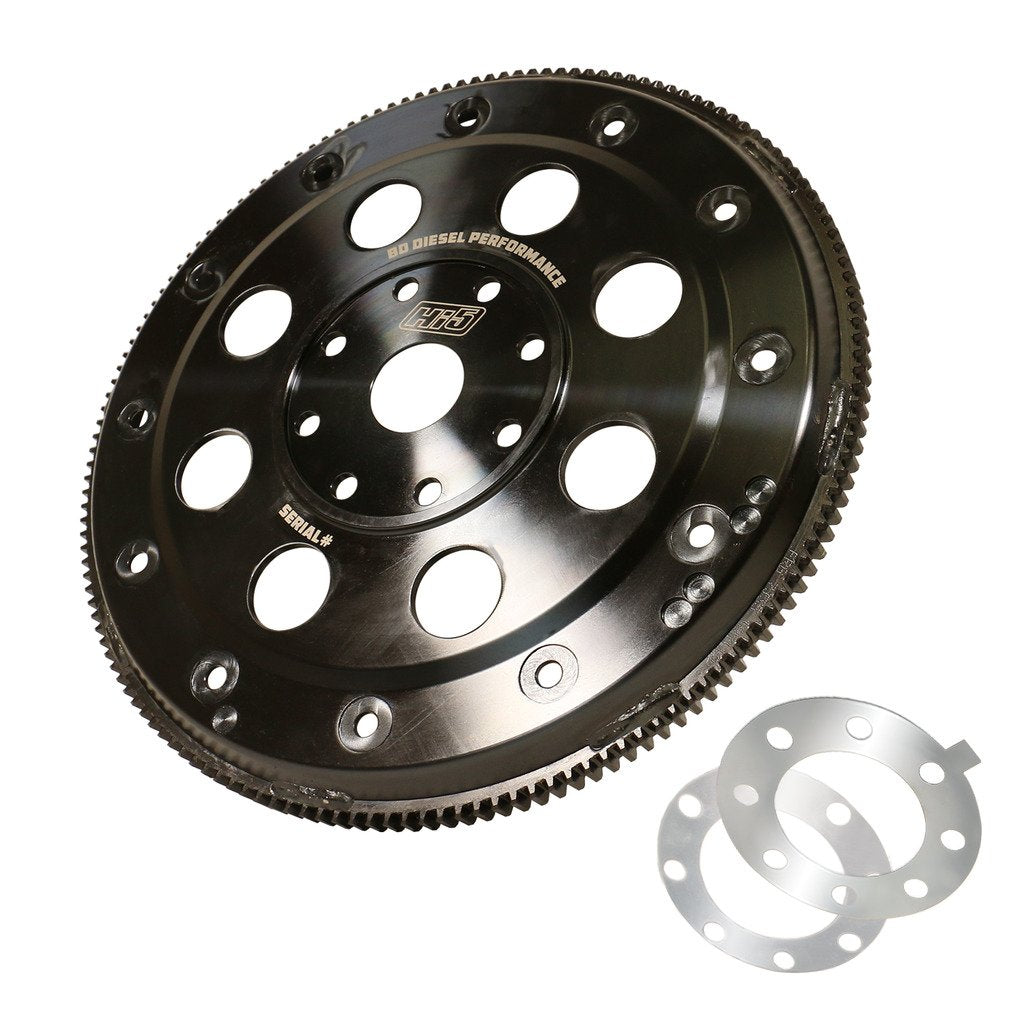

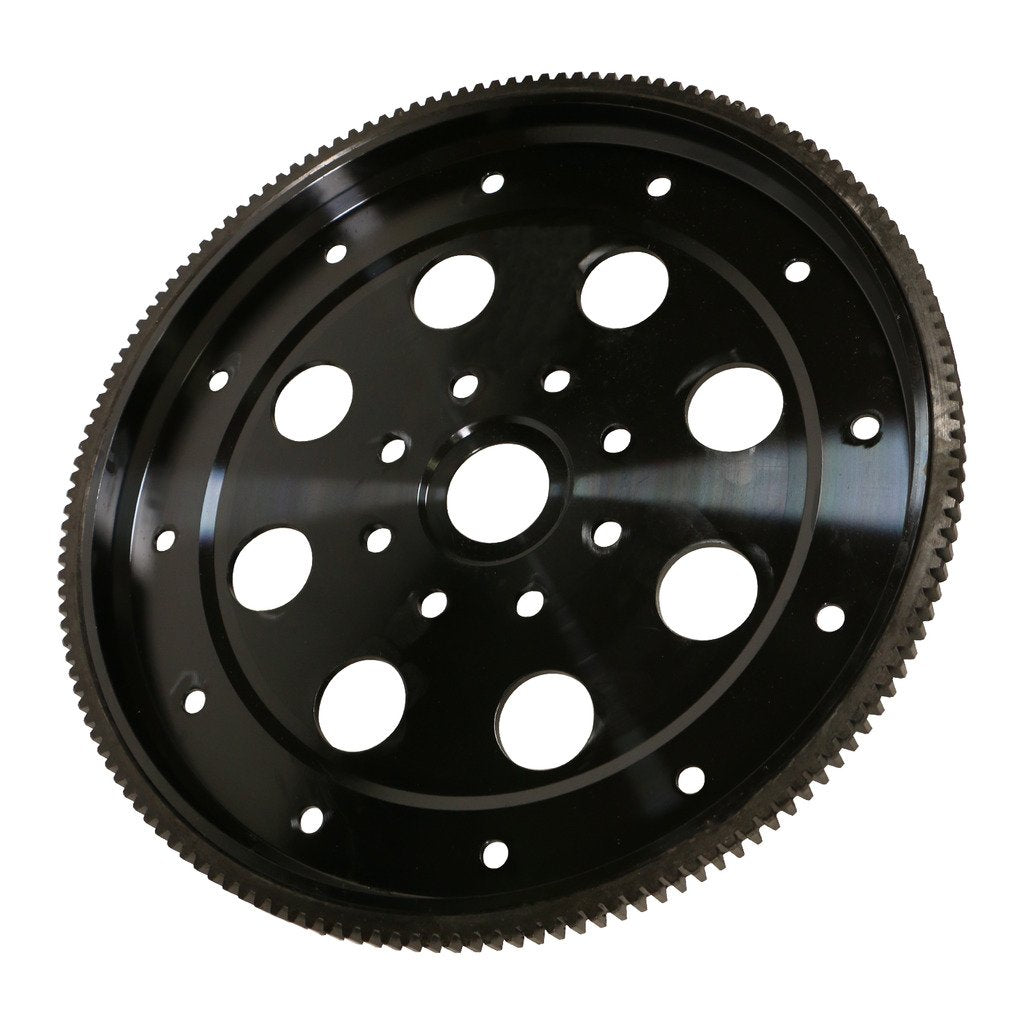

HI5 12-BOLT 5.9L CUMMINS FLEXPLATE DODGE 1994-2007 47RH/47RH/48RE
HI5 12-BOLT 5.9L CUMMINS FLEXPLATE DODGE 1994-2007 47RH/47RH/48RE
HI5 12-BOLT 5.9L CUMMINS FLEXPLATE DODGE 1994-2007 47RH/47RH/48RE

HI5 12-BOLT 5.9L CUMMINS FLEXPLATE DODGE 1994-2007 47RH/47RH/48RE

1041212
Vendor
BD DIESEL
Regular price
$641.00
Sale price
$641.00
Quantity must be 1 or more

  • Under high torque applications, the bolts between the torque converter and flex plate can slip. Eliminate this failure with twice the clamping load. The BD 12-bolt flexplate, which includes BD's Diamond Bite Shims, maximize torque holding capacity. The BD Flex Plate is proven to handle up to 3500 lb-ft of torque. The matching 12-bolt Hi5 torque converter is required to utilize all 12 bolts. A standard 6-bolt torque converters can still be installed using only 6 bolts.

    FEATURES

    • 12 bolt holes to help prevent shearing
    • Meets SFI 29.3 Approval!
    • Reliably handle up to 3,500 lb-ft of torque
    • Twice the material of the stock flex plate
    • Forged billet
    • Precision-balanced
    • Black Oxide coated to resist corrosion and prevents hydrogen embrittlement caused by common zinc plating
    • Allows axial thrust unlike solid flywheel conversions
    • Fits any OEM or aftermarket torque converter
    • Direct, bolt-in replacement for the stock unit
    • BD Diamond Bite Shims included
    WARRANTY

    Parts
    • 36-Months
    • 150,000 Miles
